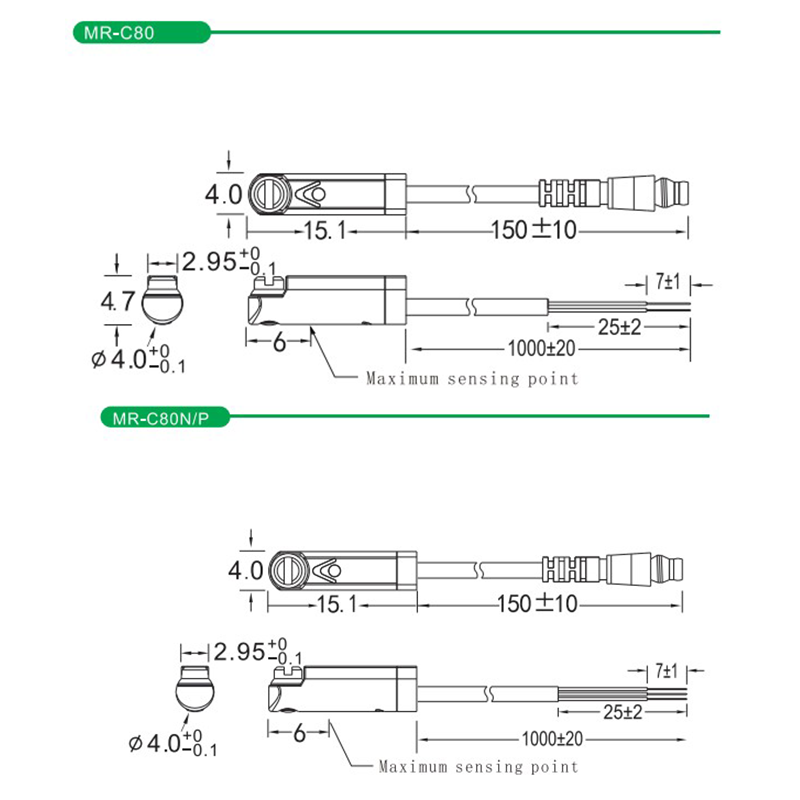

Cảm biến tiệm cận Meijidenki MR-C80
| Model | MR-C80 |
| Switch logic | Electronic: regular |
| Switch type | Two-wire contactless crystal type |
| Suitable load | DC24V relay. PLC |
| Working voltage | 10~30V DC |
| Maximum switching current | 100mA Max |
| Maximum switching capacity | 3W Max |
| Internal consumption current | 6μA Max.@24V |
| Residual pressure | 2.65V Max@50mA |
| Leakage current | 40μA Max.@28v |
| Indicator | Red LED |
| Cable cable | 2.8∮,2C,grey oil-resistant TPU |
| Sensitivity | 25-1000G |
| Maximum switching frequency | 1000Hz |
| Use of temperature range | -10~70°C |
| Impact resistance | 50G |
| Vibration resistance | 9G |
| Protection level | IP67（EN6052） |
| Protection circuit | Protection of sudden wave absorption |
