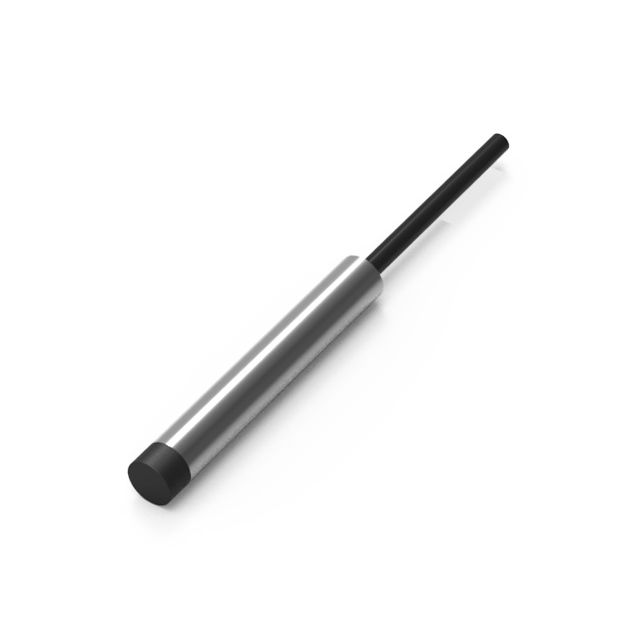

TLN6.5-04PO
| Model | TLN6.5-04PO |
| Type | Non-Shielded |
| Size | φ6.5 |
| Sensing distance | 4mm |
| Material | Stainless steel |
| Operating Voltage | 10~30V DC(Ripple＜10%) |
| Voltage drop | ＜1.5V |
| Load Current | 150mA |
| No load current | ＜10mA |
| Leakage Current | ＜0.01mA |
| Output Type | PNP Open collector， Normally Open |
| Switch frequency | 1KHz |
| Response Time | 0.2ms |
| Repeat accuracy | ＜1.0%(Sr) |
| Switch hysteresis | ＜15%(Sr) |
| Material active face | PBT |
| Operating Temperature | -25℃~+70℃ |
| Protection | Short-circuit Protection |
| Protection Degree | IP 67 |
| Overload trip point | 180mA |
| Connection | 2M/3-wires cable |

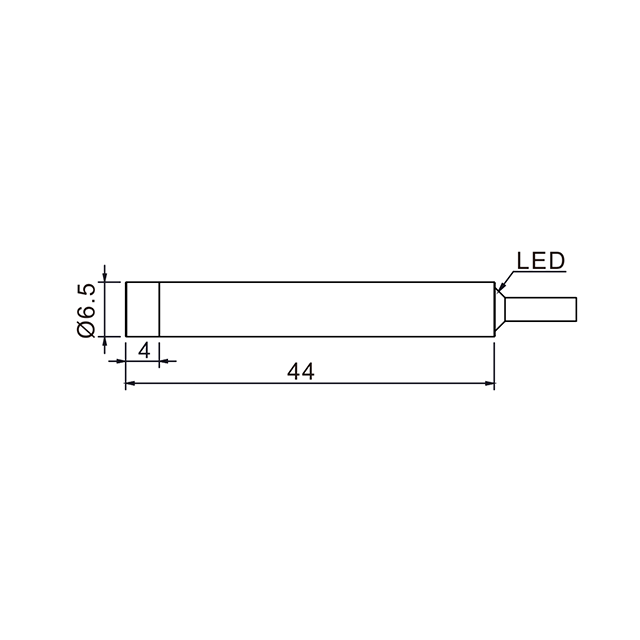

Dimensions

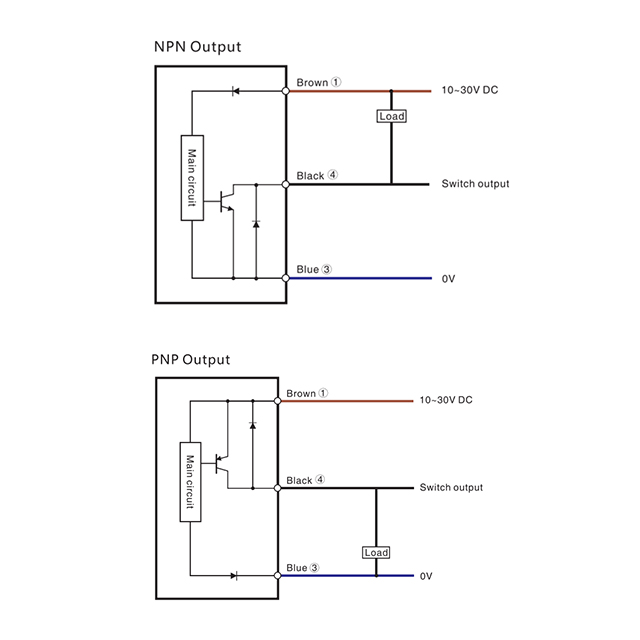

- Circuit diagram
- 1. Inductive, φ6.52. Non-Shielded, Sensing distance 4mm3. PNP Normally Open
