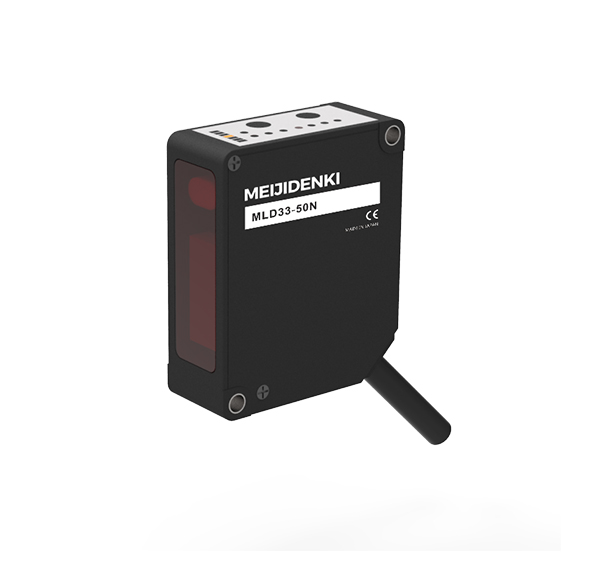

Cảm biến dịch chuyển MLD33-50N-422
| Model | MLD33-85N-422 | |
| Sensing method |
Reflective
|
|
| Base point distance |
85mm
|
|
| Sensing distance |
65~105mm
|
|
| Full Scale (F.S ) |
40mm
|
|
| Emitting Light | medium |
Red Laser diode
|
| Wavelength |
655nm
|
|
| Max output power |
1mW max
|
|
| Laser class | IEC/JIS |
Class2
|
| FDA |
Class2
|
|
| Spot size | near |
0.9*1.5mm
|
| center |
0.75*1.25mm
|
|
| far |
0.6*1.0mm
|
|
| Linearity |
±0.1%F.S
|
|
| Resolution | faster |
15um
|
| other |
10um
|
|
| Temperature drift |
±0.08%C/F.S
|
|
| Power voltage |
12~24V DC (-5%，+10% )
|
|
| Current Consumption |
max.55mA(24V DC)
|
|
| Ouptut | Switch Out |
1 Ouptut，NPN Open collector，≤100Max/30V DC, Residual voltage≤18V
|
| Communication |
RS422
|
|
| Response Time | faster |
max.5ms
|
| Standard |
max.12.5ms
|
|
| High resolution Mode |
max.36.5ms
|
|
| Sensitivity switching time |
4ms max
|
|
| Indicator | Measurement Indicator |
7 bar LED display
|
| Ouptut Indicator |
ON： OrangeQ1/Q2 Indicator ( Orange ) light
|
|
| ironmental parameters |
Protection Degree |
IP67
|
| Operating Temperature |
-10℃~+45℃， No freezing
|
|
| Operating Humid |
35%~85%RH， No freezing
|
|
| Ambient illuminance |
sunlight：20000lux ， Incandescent lamp：3000lux
|
|
| Vibration resistance |
10~55Hz/ amplitude1.5mm,XYZ 2 Hours
|
|
| Shock resistance |
500m/s2 ( Approx50G ), XYZ 3 times
|
|
| Material |
Shell：PBT Len：PMMA
|
|
| cable |
φ5mm 8 wires2m cable Max10m
|
|
| Weight |
Approx60G ( Include Wires )
|
|
