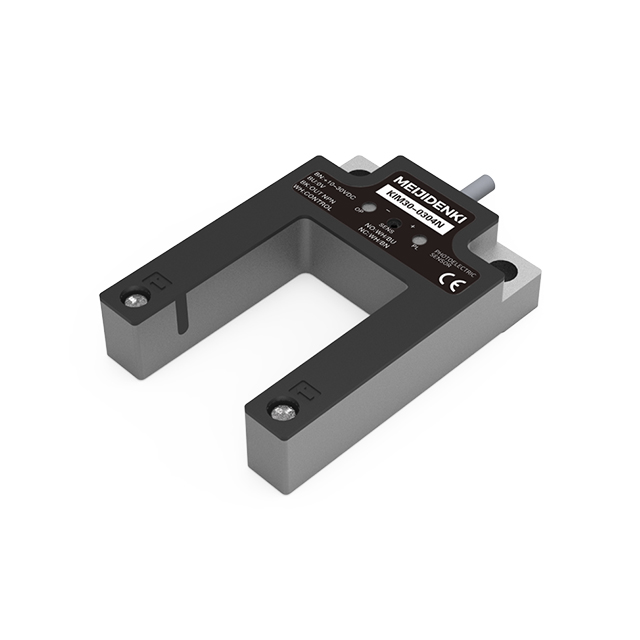

KIM30-0304P
|
Model |
KIM30-0304P |
| Detection method | Thru-beam |
| Detection distance | 30mm(Not adjustable) |

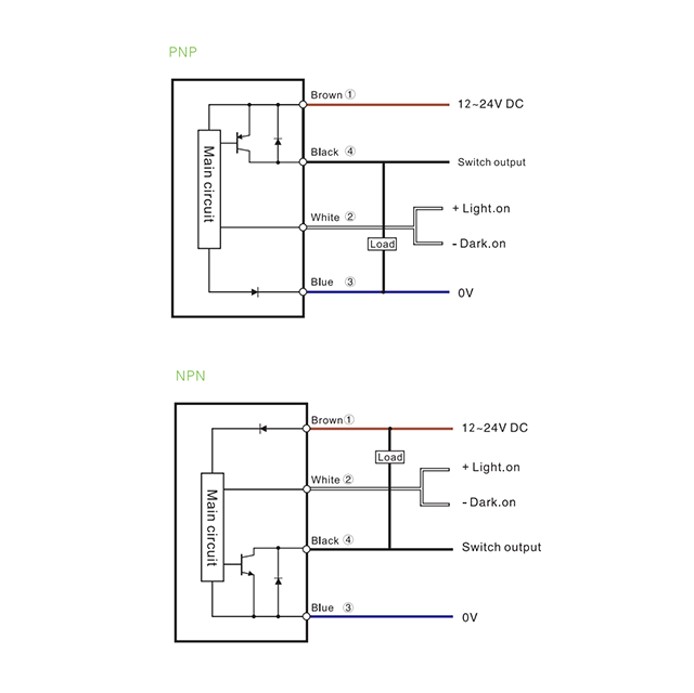

| Output mode | PNP Open collector |
| Switch mode | Selectable L.on, D.on |
| Standard test object | Opaque objects above φ2mm |
| Output instructions | Yellow LED |
| Response time | ≤1ms |
| Llight source | Infrared LED (modulation) |
| Operating voltage | 10~30V DC |
| Residual voltage | ≤2.5V DC |
| Current consumption | ≤15mA |
| Load current | ≤200mA |
| Protective circuit | Reverse polarity protection, short circuit protection |
| Ambient temperature | -15℃~55℃ |
| Withstand voltage | 1000V/AC 50/60Hz 1 minute |
| Shock resistance | 10~50Hz amplitude 1.5mm, each XYZ direction for 2 hours |
| Impact resistance | 500m/s2(50G), 3 times each in XYZ direction |
| Dielectric strength | ≥50MΩ/500V DC |
| Protection degree | IP67 |
| Material | Aluminum alloy |
| Connection | 2M 4core cable |
