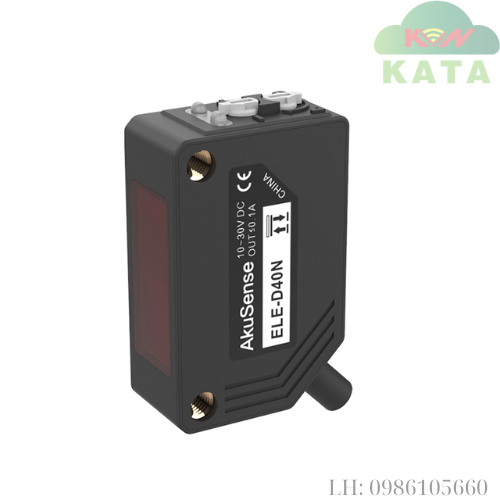

Cảm biến laser ELE-D40N. ELE-D40N là dòng cảm biến chính hãng của Akusense.
Cảm biến laser ELE-D40N. ELE-D40N Có 2 tuỳ chọn đầu ra ELE-D40N ( NPN) ELE-D40P ( PNP)
| Model | ELE-D40N |
| Detection mode | Diffuse reflection |
| Detection distance | 40cm |
| Spot diameter | ±∅1.5mm/40cm |
| Indicator light | Working indicator light: green; Action indicator: Red |
| Sensitivity regulation | Single coil potentiometer |

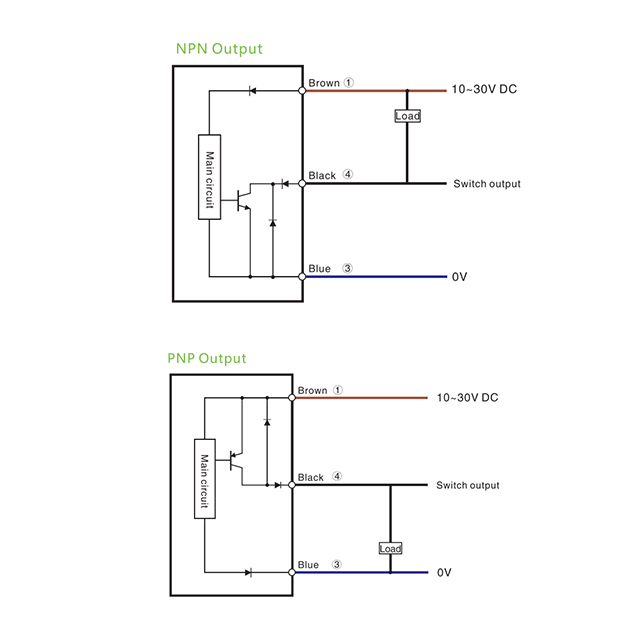

| Output mode | NPN open collector |
| Switch mode | L.on (light-in action)/D.on (light-shielding action) can be switched |
| Response time | ≤2ms |
| light source | Laser 650nm (modulation) Class 2 |
| Working voltage | 10~30V DC |
| Current consumption | ≤20mA |
| Environmental illumination | Incandescent lamp: 3000 lux or less / Sunlight: 5000 lux or less |
| Ambient temperature | -25℃~+55℃, no freezing |
| Ambient humidity | 35%~85%RH, no condensation |
| Protection circuit | Power reverse polarity protection, output reverse polarity protection, surge protection, short circuitprotection Power reverse polarity protection, surge protection, short circuit protection |
| Degree of protection | IP 65 |
| Material | PBT + glass fiber (shell), PMMA (lens) |
| Way out | 2M/3 core cable |
| Anti-vibration | 10~50Hz, 0.5mm amplitude, 2 hours each in X, Y, Z directions |
| Accessories | Screwdriver |
ELE-D40P ( PNP)
| Model | ELE-D40P |
| Detection mode | Diffuse reflection |
| Detection distance | 40cm |
| Spot diameter | ±∅1.5mm/40cm |
| Indicator light | Working indicator light: green; Action indicator: Red |
| Sensitivity regulation | Single coil potentiometer |
| Output mode | PNP open collector |
| Switch mode | L.on (light-in action)/D.on (light-shielding action) can be switched |
| Response time | ≤2ms |
| light source | Laser 650nm (modulation) Class 2 |
| Working voltage | 10~30V DC |
| Current consumption | ≤20mA |
| Environmental illumination | Incandescent lamp: 3000 lux or less / Sunlight: 5000 lux or less |
| Ambient temperature | -25℃~+55℃, no freezing |
| Ambient humidity | 35%~85%RH, no condensation |
| Protection circuit | Power reverse polarity protection, output reverse polarity protection, surge protection, short circuitprotection Power reverse polarity protection, surge protection, short circuit protection |
| Degree of protection | IP 65 |
| Material | PBT + glass fiber (shell), PMMA (lens) |
| Way out | 2M/3 core cable |
| Anti-vibration | 10~50Hz, 0.5mm amplitude, 2 hours each in X, Y, Z directions |
| Accessories | Screwdriver |
Công ty TNHH Công Nghiệp KATA Việt Nam là đại lý chính hãng, phân phối dòng sản phẩm “Cảm biến laser ELE-D40N. ELE-D40N” AKUSENSE tại thị trường Việt Nam.
Chúng tôi cam kết sản phẩm chính hãng chất lượng tốt nhất, thời gian giao hàng ngắn nhất và giá thành tốt nhất tới quý khách hàng.
