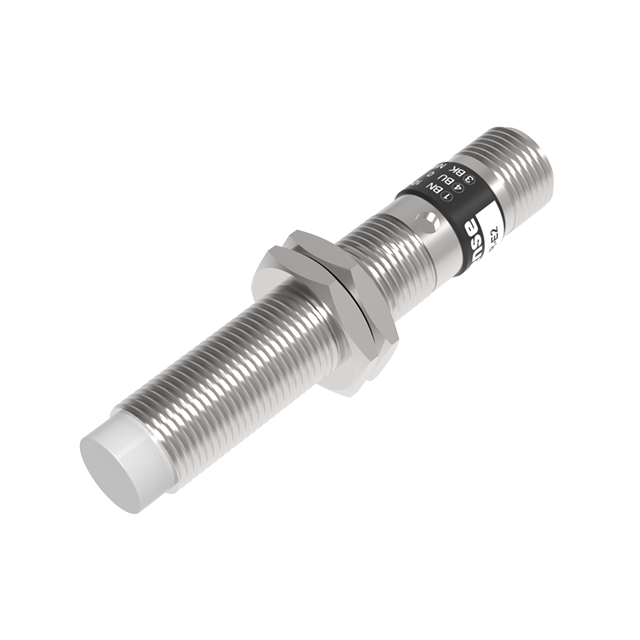

TPN12-04PR-E2 TPN12-04NR-E2 TPF12-04NR-E2 TPF12-04PR-E2 là dòng cảm biến tiệm cận chính hãng đến từ AKUSENSE
Thông số kỹ thuật
| Model | TPN12-04PR-E2 |
| Mounting | Unshielded |
| Sensing distance | 4mm |
| Working distance | 0~3.24mm |
| Hysteresis | 1~20% |
| Standard target | 12×12mm FE360 |
| Repeatability | 5% |
| Operating Voltage | 10~30V DC |
| Output type | PNP NO+NC |
| Maximum ripple content | ≤10% |
| Output current | ≤200mA |
| Output voltage drop | ≤2V |
| No-load current | ≤15mA |
| Leakage current | ≤15uA |
| operating frequency | 2kHz |
| Start delay | 50ms |
| Ambient temperature range | -40℃~+80℃ in a short time (within 15 seconds) up to 100℃ 10% |
| Thermal drift | 10% |
| Shock and vibration | IEC 60947-5-5/7.4 |
| Weight | 30g |
| LEDs | NO output status/without led-25℃~+110℃. |
| Protection level | IP67,IP68(1m,7days);IP69K (in line with DIN 40050-9 standard). |
| Electromagnetic compatibility/EMC | Comply with EMC directive requirements and comply with IEC 60947-5-2 specification. |
| Housing material | Stainless steel |
| Sensor head material | PPS (FDA certification) |
| Connection method | M12 connector with gold-plated pins |
| Tightening torque | 25Nm |
| Model | TPN12-04NR-E2 |
| Mounting | Unshielded |
| Sensing distance | 4mm |
| Working distance | 0~3.24mm |
| Hysteresis | 1~20% |
| Standard target | 12×12mm FE360 |
| Repeatability | 5% |
| Operating Voltage | 10~30V DC |
| Output type | NPN NO+NC |
| Maximum ripple content | ≤10% |
| Output current | ≤200mA |
| Output voltage drop | ≤2V |
| No-load current | ≤15mA |
| Leakage current | ≤15uA |
| operating frequency | 2kHz |
| Start delay | 50ms |
| Ambient temperature range | -40℃~+80℃ in a short time (within 15 seconds) up to 100℃ 10%. |
| Thermal drift | 10% |
| Shock and vibration | IEC 60947-5-5/7.4 |
| Weight | 30g |
| LEDs | NO output status/without led-25℃~+110℃. |
| Protection level | IP67,IP68(1m,7days);IP69K (in line with DIN 40050-9 standard). |
| Electromagnetic compatibility/EMC | Comply with EMC directive requirements and comply with IEC 60947-5-2 specification. |
| Housing material | Stainless steel |
| Sensor head material | PPS (FDA certification) |
| Connection method | M12 connector with gold-plated pins |
| Tightening torque | 25Nm |
Model |
TPF12-04NR-E2 |
| Mounting | Shielded |
| Sensing distance | 4mm |
| Working distance | 0~3.24mm |
| Hysteresis | 1~20% |
| Standard target | 12×12mm FE360 |
| Repeatability | 5% |
| Operating Voltage | 10~30V DC |
| Output type | NPN NO+NC |
| Maximum ripple content | ≤10% |
| Output current | ≤200mA |
| Output voltage drop | ≤2V |
| No-load current | ≤15mA |
| Leakage current | ≤15uA |
| operating frequency | 2kHz |
| Start delay | 50ms |
| Ambient temperature range | -40℃~+80℃ in a short time (within 15 seconds) up to 100℃ 10%. |
| Thermal drift | 10% |
| Shock and vibration | IEC 60947-5-5/7.4 |
| Weight | 30g |
| LEDs | NO output status/without led-25℃~+110℃. |
| Protection level | IP67,IP68(1m,7days);IP69K (in line with DIN 40050-9 standard). |
| Electromagnetic compatibility/EMC | Comply with EMC directive requirements and comply with IEC 60947-5-2 specification. |
| Housing material | Stainless steel |
| Sensor head material | PPS (FDA certification) |
| Connection method | M12 connector with gold-plated pins |
| Tightening torque | 25Nm |
| Model | TPF12-04PR-E2 |
| Mounting | Shielded |
| Sensing distance | 4mm |
| Working distance | 0~3.24mm |
| Hysteresis | 1~20% |
| Standard target | 12×12mm FE360 |
| Repeatability | 5% |
| Operating Voltage | 10~30V DC |
| Output type | PNP NO+NC |
| Maximum ripple content | ≤10% |
| Output current | ≤200mA |
| Output voltage drop | ≤2V |
| No-load current | ≤15mA |
| Leakage current | ≤15uA |
| operating frequency | 2kHz |
| Start delay | 50ms |
| Ambient temperature range | -40℃~+80℃ in a short time (within 15 seconds) up to 100℃ 10%. |
| Thermal drift | 10% |
| Shock and vibration | IEC 60947-5-5/7.4 |
| Weight | 30g |
| LEDs | NO output status/without led-25℃~+110℃. |
| Protection level | IP67,IP68(1m,7days);IP69K (in line with DIN 40050-9 standard). |
| Electromagnetic compatibility/EMC | Comply with EMC directive requirements and comply with IEC 60947-5-2 specification. |
| Housing material | Stainless steel |
| Sensor head material | PPS (FDA certification) |
| Connection method | M12 connector with gold-plated pins |
| Tightening torque | 25Nm |
